产品介绍
TDTG系列斗式提升机是一种应用非常广泛的机械输送设备，其工作原理是牵引带围绕在头轮和底轮之间，畚斗按一定距离固定在牵引带上，外壳将畚斗和牵引带密封，物料由机座进入运动着的料斗，沿机筒提升，在机头处物料由料斗抛出，经卸料管卸出机外。具有提升稳定、占地面积小、提升高度高、密封性能好等优点。
适用于垂直提升输送各种粉状、颗粒物料、运转平稳、效率高、易维修。动力配备可根据高度匹配，头轮采用邵氏70-80硫化胶包胶，带有止逆装置，机筒机制包边，机头出料口与机座进料口易磨损部分加设耐磨衬板，采用强力皮带与耐磨塑料畚斗。
TDTG series bucket elevator is a widely used mechanical conveying equipment.Its working principle is that the tractionbelt is surrounded between the head wheel and the bottom wheel.The dustpan is fixed on the traction belt at a certain distance.The shell seals the dustpan and the traction belt.The materials enter the moving bucket from the base and are lifted along the barrel.The materials at the head are thrown out by the hopper and discharged out of the machine through the discharge pipe.The utility model has the advantages of stable lifting.small floor area,high lifting height,good sealing performance,etc.
It is suitable for vertically lifting and conveying various powdery and granular materials,with stable operation.high efficiency and easy maintenance.The power equipment can be matched according to the height.The head wheel is wrapped with Shao's 70-80 vulcanized rubber,with a check device,the machine barrel is wrapped,the wear-resistant lining plate is added at the easily worn parts of the head outlet and the base inlet,and the strong belt and wear-resistant plastic dustpan are used.

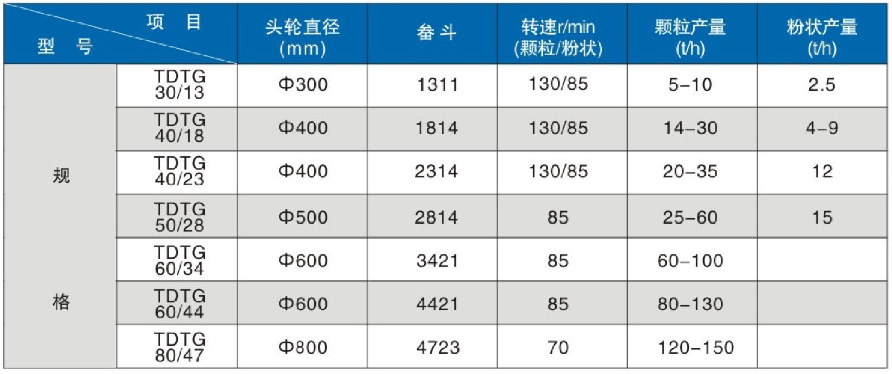

主要技术参数Main technical parameters
